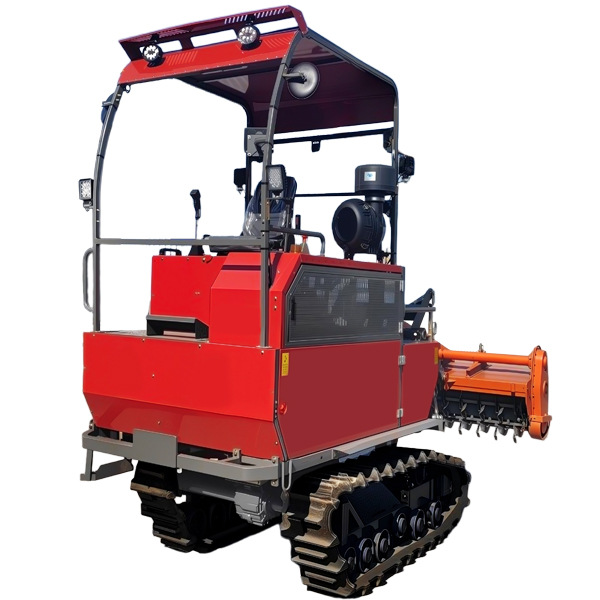

1GZL-230 CRAWLER TRACTOR / ROTARY CULTIVATOR

Application	Soil Preparation Machinery, for Greenhouses, Orchards, Hilly Areas, Paddy Fields.
Feature	Crawler walking, reduce ground pressure and and enhanced stability, preserving soil structure and crop health. Hydraulic electrical operation,offering precise control and high force output. Ground clearance 340mm, Guage 1250mm, Rubber track width 500. Three-point Linkage, multi-functional match different farming Implements to finish rotary tilling, seeding, ridging, furrowing works etc,

Product Parameters

Specification
1	Product	/	CRAWLER TRACTOR
2	Model	/	1GZL-230
3	Type	/	Self-Propelled, Crawler Tractor,Rotary Cultivator.
4	Overall Dimension ( L×W×H )	mm	3670 x 2500 x 2750
5	Weight	kg	2450
6	Productivity of Operating Hours	hm²/h	0.4～0.7
7	Engine Model	/	4D35ZT
8	Rated Power	kw/hp	82KW/110HP
9	Engine Type	/	Water-Cooled, 4-Cylinder, DI-Injection, Vertical Turbocharged Diesel.
10	Rated Rotation Speed	r/min	2400
11	Type of Gearbox:	/	Gearbox 85 + HST 45
12	Rubber Track	mm	500 x 90 x 53
13	Gauge	mm	1250
14	Minimum Ground Clearance	mm	340
15	Rear Mounted Implements Type	/	Three-point Linkage
16	Implements Category	/	Categories 2
17	PTO Rotating Speed	r/min	720/540
18	Working Width	mm	2000
19	Type of Kinfe	/	"C" type Rotary Blade
20	Quantity of Kinfe	/	54
21	Driving Type	/	Side Gear Driving
