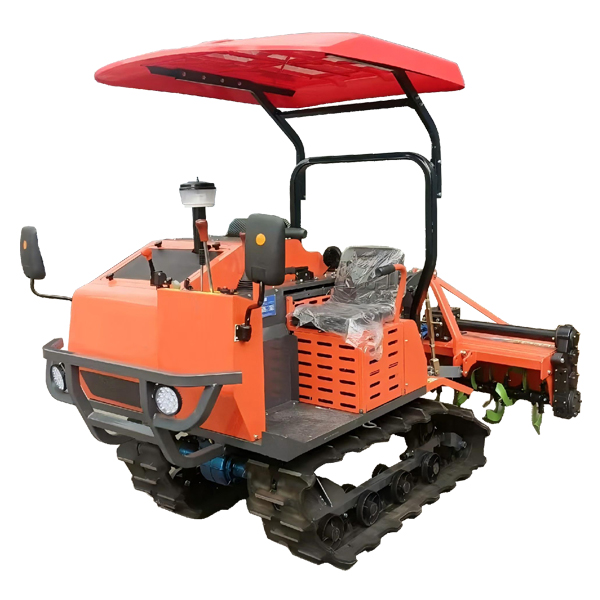

1GZL-150 CRAWLER TRACTOR / ROTARY CULTIVATOR

Product Introduction

ApplicationSoil Preparation Machinery, for Greenhouses, Orchards, Hilly Areas, Paddy Fields.
FeatureCrawler walking, reduce ground pressure and and enhanced stability, preserving soil structure and crop health.
Hydraulic electrical operation,offering precise control and high force output.
Ground clearance 295mm, Guage 800mm, Rubber track width 350
Three-point Linkage, multi-functional match different farming Implements to finish rotary tilling, seeding, ridging, furrowing works etc,






Product Parameters
Specification


1Product/CRAWLER TRACTOR / ROTARY CULTIVATOR
2Model/1GZL-150
3Type/Self-Propelled, Crawler Tractor,Rotary Cultivator.
4Overall Dimension ( L×W×H )mm2900×1650×2150
5Weight kg1100
6Productivity of Operating Hourshm²/h0.25~0.4
7Engine Model/4N27X41
8Rated Power kw/hp36.8KW/50HP
9Engine Type/Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel Engine.
10Rated Rotation Speed r/min2400
11Type of Gearbox:  /Mechanical Manual
12Rubber Trackmm350 x  90 x 40
13Gaugemm800
14Minimum Ground Clearance mm295
15Rear Mounted Implements Type/Three-point Linkage
16Implements Category/Categories 2
17PTO Rotating Speed r/min580
18Working Widthmm1250
19Type of Kinfe/IT195
20Quantity of Kinfe/28
21Driving Type/Middle Gear Driving
