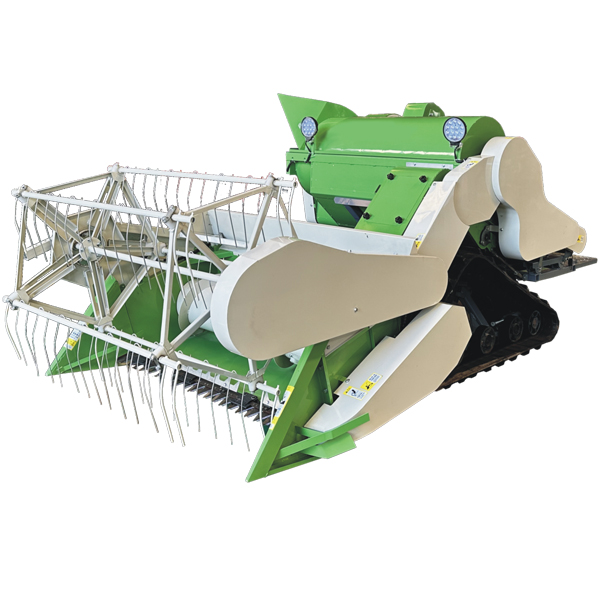

4LZ-1.2D SMALL COMBINE HARVESTER

Product Introduction

ApplicationRice Wheat and other granular crops.
FeatureThis small combine harvester is a versatile, maneuverable agricultural machine designed for efficient harvesting in challenging terrains like mountainous regions, islands, and small irregular plots.  Its compact size and lightweight design allow easy access to confined spaces while maintaining high performance in rice, wheat, and other grain crops.
Fully-functioning cutting threshing, cleanning, unloading, it is manpower saved and efficiency improved small harvester.

Product Parameters
Specification


1Product/MINI COMBINE HARVESTER
2Model/4LZ-1.2D
3Type/Full-Feed, Self-Propelled, Riding Type, Track Combine
4Overall Dimension ( L×W×H )mm3200×1650×1350
5Weight kg660
6Productivity of Operating Hourshm²/h0.15~0.25
7Engine Model/LC2V80FD
8Rated Power kw/hp18KW/24.5HP
9Engine Type/Vertical,  Four-Stroke,  Air-Cooled,  Gasoline Engine.
10Rated Rotation Speed r/min3600
11Type of Gearbox:  /Mechanical Stepped Transmission 4 (Slow,Fast,Empty,Backward)
12Rubber Trackmm400 x  66 x 48
13Gaugemm750
14Minimum Ground Clearance mm289
15Cutting Widthmm1280
16Pickup Reel/Eccentric Tooth(off-centre),D700mm Qty 5
17Threshing Systemr/minSpiked Tooth Axial Flow
18Cylinder Diameter×Lengthmm400 × 1060
19Cleaning Mechanism Type/Air and Screen Cleaning
20Grain Storing/Small Tank by Manual Bagging
