PRODUCT LIST
| Application | Farm Power Supply Machine | |
| Feature | Well structured design, high intensity. Adopting high quality engine, low fuel consumption, power strong and environmentally friendly; Flexible control, machin durable and widely used in various fields. | |
| Specification | |||

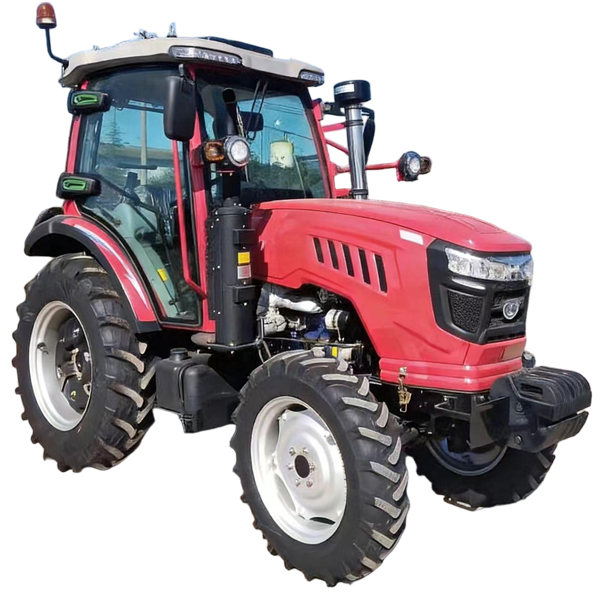

| 1 | Product | / | WHEEL TRACTOR |
| 2 | Model | / | XD804 / 904 |
| 3 | Type | / | 4 x 4 |
| 4 | Overall Dimension ( L×W×H ) | mm | 4100×1780×2750 |
| 5 | Minimum Operating Weight | kg | 2700 |
| 6 | Productivity of Operating Hours | hm²/h | N/A |
| 7 | Engine Model | / | YN38TBE4, YN38TDE4 |
| 8 | Rated Power | kw/hp | 66.2KW/90HP, 59KW/80HP |
| 9 | Engine Type | / | Water-Cooled, 4-Cylinder, DI-Injection, Vertical Turbocharged Diesel. |
| 10 | Rated Rotation Speed | r/min | 2300 |
| 11 | Type of Gearbox: | / | 16F+8R |
| 12 | Tires(F/R) | mm | 9.5-24/14.9-30 |
| 13 | Wheel Base | mm | 2070 |
| 14 | Wheel Track | mm | 1300 / 1390 |
| 15 | Minimum Ground Clearance | mm | 350 (Bottom of the rear towing frame) |
| 16 | Hydraulic Output Groups | / | 2 |
| 17 | PTO Spline | / | 8 |
| 18 | PTO Rotating Speed | r/min | 540/760 |
| 19 | Rear Mounted Implements Type | / | Three-point Linkage |
| 20 | Implements Category | / | Categories 2 |
